ILIAS-Tricks not only for Schools

Install EtherpadLite@ILIAS

[wolfganghuebsch], [iliasadmin1] - 1. Jan 2018, 20:20

In this tutorial I install Etherpad-Lite on a Debian 9 and ILIAS 5.2 including a redirect to port 443/https. The tutorial should also fit to a current Ubuntu system.

Changelog

  • 2019.09.18: Added a missing start script

Install needed office-suits and other stuff

  • apt-get install gzip git curl python libssl-dev pkg-config build-essential
  • apt-get install abiword
  • Determine paths:
    • whereis abiword gives /usr/bin/abiword
    • Keep the paths in mind

Install Database

  • mysql -u root -p
  • Give password for mysqluser root
  • mysql> CREATE DATABASE etherpad_1 CHARACTER SET utf8 COLLATE utf8_general_ci;
  • No we give a user all rights to the database etherpad_1. You can use the user of the current ilias-Database. You find the credentials in the ilias-webdir ilias/data/clientname/client.ini.php
  • mysql> GRANT ALL PRIVILEGES ON etherpad_1.* TO 'db_iliasuser1'@'localhost';
  • mysql> exit

Install an run EtherpadLite

  • cd /opt
  • git clone https://github.com/ether/etherpad-lite.git
  • Adjust right settings:
    • chmod -R 770 /opt/etherpad-lite
    • chown -R www-data:www-data /opt/etherpad-lite
  • cd etherpad-lite
  • Run it for the first time: bin/run.sh
  • Stop it with CTRL+C
  • nano settings.json
  • Comment out the lines concerning the dirty db settings between 38 and 46 and remove the comments from the mysql-part between line 47-56. Give the mysql-crendetials from above. Example:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
/*
//The Type of the database. You can choose between dirty, postgres, sqlite and mysql
//You shouldn't use "dirty" for for anything else than testing or development
"dbType" : "dirty",
//the database specific settings
"dbSettings" : {
"filename" : "var/dirty.db"
},

*/
// An Example of MySQL Configuration
"dbType" : "mysql",
"dbSettings" : {
"user" : "db_iliasuser1",
"host" : "localhost",
"password": "123456789",
"database": "etherpad_1",
"charset" : "utf8"
},

  • Goto line 72 to set language: "lang": "en-gb" - language-settings can be found here Example for german: "lang": "de"
  • Goto line 108 and set "requireSession" : true,
  • Goto line 118 and set "minify" : false,
  • Give paths:
    • Line 126: "soffice" : "/usr/bin/abiword",
  • Comment out lines 158-169 an give credendials for user
  • Adjust loglevel in 202: "loglevel": "WARN",
  • Comment out the logfile-part and give a filename in 214
  • Exit and start the service:  bin/run.sh

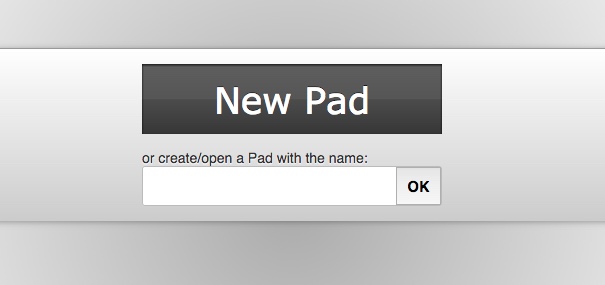

  • Start your browser and call the pad: yourdmain.tld:9001
  • If you try to add a new pad, this message is expected: You do not have permission to access this pad
  • Stop the process with STRG+C
  • In your etherpad-lite-directory should now be a file called APIKEY.txt. If not, run  bin/installDeps.sh

Because examples are allways good, here you can see my settings.json file I use @bbs-ilias:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
/*
This file must be valid JSON. But comments are allowed

Please edit settings.json, not settings.json.template

To still commit settings without credentials you can
store any credential settings in credentials.json
*/
{
// Name your instance!
"title": "Etherpad auf BBS-ILIAS",

// favicon default name
// alternatively, set up a fully specified Url to your own favicon
"favicon": "favicon.ico",

//IP and port which etherpad should bind at
"ip": "0.0.0.0",
"port" : 9001,

/*
// Node native SSL support
// this is disabled by default
//
// make sure to have the minimum and correct file access permissions set
// so that the Etherpad server can access them

"ssl" : {
"key" : "/path-to-your/epl-server.key",
"cert" : "/path-to-your/epl-server.crt",
"ca": ["/path-to-your/epl-intermediate-cert1.crt", "/path-to-your/epl-intermediate-cert2.crt"]
},

*/

"dbType" : "mysql",
"dbSettings" : {
"user" : "dbuser123",
"host" : "localhost",
"password": "dbpassword123",
"database": "Etherpad1"
},

//the default text of a pad
"defaultPadText" : "Welcome to Etherpad!\n\nThis pad text is synchronized as you type, so that everyone viewing this page sees the same text. This allows you to collaborate seamlessly on documents!\n\nGet involved with Etherpad at http:\/\/etherpad.org\n",

/* Default Pad behavior, users can override by changing */
"padOptions": {
"noColors": true,
"showControls": true,
"showChat": true,
"showLineNumbers": true,
"useMonospaceFont": false,
"userName": true,
"userColor": false,
"rtl": false,
"alwaysShowChat": false,
"chatAndUsers": false,
"lang": "de"
},

/* Should we suppress errors from being visible in the default Pad Text? */
"suppressErrorsInPadText" : false,

/* Users must have a session to access pads. This effectively allows only group pads to be accessed. */
"requireSession" : true,

/* Users may edit pads but not create new ones. Pad creation is only via the API. This applies both to group pads and regular pads. */
"editOnly" : false,

/* Users, who have a valid session, automatically get granted access to password protected pads */
"sessionNoPassword" : false,

/* if true, all css & js will be minified before sending to the client. This will improve the loading performance massivly,
but makes it impossible to debug the javascript/css */
"minify" : false,

/* How long may clients use served javascript code (in seconds)? Without versioning this
may cause problems during deployment. Set to 0 to disable caching */
"maxAge" : 21600, // 60 * 60 * 6 = 6 hours

/* This is the absolute path to the Abiword executable. Setting it to null, disables abiword.
Abiword is needed to advanced import/export features of pads*/
"abiword" : "/usr/bin/abiword",

/* This is the absolute path to the soffice executable. Setting it to null, disables LibreOffice exporting.
LibreOffice can be used in lieu of Abiword to export pads */
"soffice" : "/usr/bin/libreoffice",

/* This is the path to the Tidy executable. Setting it to null, disables Tidy.
Tidy is used to improve the quality of exported pads*/
"tidyHtml" : null,

/* Allow import of file types other than the supported types: txt, doc, docx, rtf, odt, html & htm */
"allowUnknownFileEnds" : true,

/* This setting is used if you require authentication of all users.
Note: /admin always requires authentication. */
"requireAuthentication" : false,

/* Require authorization by a module, or a user with is_admin set, see below. */
"requireAuthorization" : false,

/*when you use NginX or another proxy/ load-balancer set this to true*/
"trustProxy" : false,

/* Privacy: disable IP logging */
"disableIPlogging" : false,

/* Users for basic authentication. is_admin = true gives access to /admin.
If you do not uncomment this, /admin will not be available! */

"users": {
"admin": {
"password": "ilias",
"is_admin": true
},
"ilias": {
"password": "ilias",
"is_admin": false
}
},


// restrict socket.io transport methods
"socketTransportProtocols" : ["xhr-polling", "jsonp-polling", "htmlfile"],

// Allow Load Testing tools to hit the Etherpad Instance. Warning this will disable security on the instance.
"loadTest": false,

// Disable indentation on new line when previous line ends with some special chars (':', '[', '(', '{')
/*
"indentationOnNewLine": false,
*/

/* The toolbar buttons configuration.
"toolbar": {
"left": [
["bold", "italic", "underline", "strikethrough"],
["orderedlist", "unorderedlist", "indent", "outdent"],
["undo", "redo"],
["clearauthorship"]
],
"right": [
["importexport", "timeslider", "savedrevision"],
["settings", "embed"],
["showusers"]
],
"timeslider": [
["timeslider_export", "timeslider_returnToPad"]
]
},
*/

/* The log level we are using, can be: DEBUG, INFO, WARN, ERROR */
"loglevel": "WARN",

//Logging configuration. See log4js documentation for further information
// https://github.com/nomiddlename/log4js-node
// You can add as many appenders as you want here:
"logconfig" :
{ "appenders": [
{ "type": "console"
//, "category": "access"// only logs pad access
}
/*
, { "type": "file"
, "filename": "etherpad-lite.log"
, "maxLogSize": 1024
, "backups": 3 // how many log files there're gonna be at max
//, "category": "test" // only log a specific category
}*/
/*
, { "type": "logLevelFilter"
, "level": "warn" // filters out all log messages that have a lower level than "error"
, "appender":
{ Use whatever appender you want here }
}*/
/*
, { "type": "logLevelFilter"
, "level": "error" // filters out all log messages that have a lower level than "error"
, "appender":
{ "type": "smtp"
, "subject": "An error occured in your EPL instance!"
, "recipients": "bar@blurdybloop.com, baz@blurdybloop.com"
, "sendInterval": 60*5 // in secs -- will buffer log messages; set to 0 to send a mail for every message
, "transport": "SMTP", "SMTP": { // see https://github.com/andris9/Nodemailer#possible-transport-methods
"host": "smtp.example.com", "port": 465,
"secureConnection": true,
"auth": {
"user": "foo@example.com",
"pass": "bar_foo"
}
}
}
}*/
]
}
}

Deploy Etherpad with a start-stop-script

  • cd /etc/init.d
  • nano etherpad-lite
  • Copy the following in:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
#!/bin/bash

### BEGIN INIT INFO
# Provides: etherpadlite
# Required-Start: $local_fs $remote_fs $network $syslog
# Required-Stop: $local_fs $remote_fs $network $syslog
# Default-Start: 2 3 4 5
# Default-Stop: 0 1 6
# Short-Description: starts etherpad lite1
# Description: starts etherpad lite1 using start-stop-daemon
### END INIT INFO

PATH="/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin:/root/local/bin"
LOGFILE="/var/log/etherpad-lite.log"
EPLITE_DIR="/opt/etherpad-lite"
EPLITE_BIN="bin/safeRun.sh"
USER="root"
GROUP="www-data"
DESC="Etherpad Lite"
NAME="etherpad-lite"

set -e

. /lib/lsb/init-functions

start() {
echo "Starting $DESC... "

start-stop-daemon --start --chuid "$USER:$GROUP" --background --make-pidfile --pidfile /var/run/$NAME.pid --exec $EPLITE_DIR/$EPLITE_BIN -- $LOGFILE || true
echo "done"
}

#We need this function to ensure the whole process tree will be killed
killtree() {
local _pid=$1
local _sig=${2-TERM}
for _child in $(ps -o pid --no-headers --ppid ${_pid}); do
killtree ${_child} ${_sig}
done
kill -${_sig} ${_pid}
}

stop() {
echo "Stopping $DESC... "
if test -f /var/run/$NAME.pid; then
while test -d /proc/$(cat /var/run/$NAME.pid); do
killtree $(cat /var/run/$NAME.pid) 15
sleep 0.5
done
rm /var/run/$NAME.pid
fi
echo "done"
}

status() {
status_of_proc -p /var/run/$NAME.pid "" "etherpad-lite" && exit 0 || exit $?
}

case "$1" in
start)
start
;;
stop)
stop
;;
restart)
stop
start
;;
status)
status
;;
*)
echo "Usage: $NAME {start|stop|restart|status}" >&2
exit 1
;;
esac

exit 0

  • chmod +x etherpad-lite
  • Call the script: /etc/init.d/etherpad-lite start
  • Start your browser again and call the pad: yourdomain.tld:9001

  • We add another script that checks if the service realy runs: nano /opt/scripts/checkpad
  • We add the following code and change line 3:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
#!/bin/bash

url="http://yourdomain.de:9001"
#Use the following line only if you have a redirect from port 9001 to 443:
#url="https://pad.yourdomain.de"
code="OK"
status=$(curl -s --head $url | head -n 1)
echo $status
string="$status"

if [[ $string == *${code}* ]];
then

echo "Etherpad up"
else

echo "Etherpad seems to be down..."

status60=$(curl -s --head $url | head -n 1)
echo $status
string60="$status"

if [ -f /var/run/etherpad-lite.pid ]
then
echo "Etherpad process active, try to stop..."
/etc/init.d/etherpad-lite stop
sleep 10
rm /var/run/etherpad-lite.pid
fi

/etc/init.d/etherpad-lite start

fi

  • chmod +x /opt/scripts/checkpad

Crontab settings

  • nano /etc/crontab

1
2
3
4
5
#Check Etherpad every 2 minutes if it runs. If not, it will be restarted
*/2 * * * * root /opt/scripts/checkpad > /dev/null 2>&1

#Stop Etherpad-Lite once a day (the line above will restart it automatically)
1 6 * * * root /etc/init.d/etherpad-lite stop >/dev/null 2>&1

Install Plugins

  • To call the admin page type in your browser: yourdmain.tld:9001/admin
  • Login with the admin-credentials you set in the file settings.json
  • Choose "Plugin-Manager"
  • I recomend to install only two or three plugins because plugins are always dangerous and their use can lead to crashes. I recommend only:
    • headings2
    • author_hover

Configuring ILIAS

  • mkdir -p /var/www/html/ilias/Customizing/global/plugins/Services/Repository/RepositoryObject
  • cd /var/www/html/ilias/Customizing/global/plugins/Services/Repository/RepositoryObject
  • git clone https://github.com/jrocho/ILIAS-Etherpad-Lite-Plugin.git EtherpadLite
  • Adjust right settings:
    • chmod -R 775 EtherpadLite
    • chown -R www-data:www-data EtherpadLite

  • Login to ILIAS and call Administration-Plugins
  • Update the Plugin (Aktualisieren)
  • Configure the plugin:

Setting

http

http port 80

https

Host

bbs-ilias

pad.bbs-ilias.de

pad.bbs-ilias

Port

9001

80

443

Apikey

Content of APIKEY.txt

Content of APIKEY.txt

Content of APIKEY.txt

Domain

.bbs-ilias.de

.bbs-ilias.de

.bbs-ilias.de

https

unchecked

checked

checked

EP-Version

>=1.4

>=1.4

>=1.4

Usergroup

leave empty

leave empty

leave empty

  • The standardport of etherpad-lite is 9001. If you want to run your installation completely under port 80 or 443 (https), you have to install a rewrite that I explain in the next chapter.

Configure a port-rewrite from 9001 to 80

  • If you want to run your whole ILIAS-installation under https, you have to configure a port-rewrite from port 9001 to 80 and later on to 443 (the rewrite to 443  will be done automatically by script). If you want that, you have to add another vhost-file:
  • cd /etc/apache2/sites-available
  • nano pad.bbs-ilias.de
  • Copy the following in:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
<VirtualHost pad.bbs-ilias.de:80>
LoadModule proxy_module /usr/lib/apache2/modules/mod_proxy.so
LoadModule proxy_http_module /usr/lib/apache2/modules/mod_proxy_http.so
LoadModule headers_module /usr/lib/apache2/modules/mod_headers.so
LoadModule deflate_module /usr/lib/apache2/modules/mod_deflate.so

ProxyVia On
ProxyRequests Off
ProxyPass / http://localhost:9001/
ProxyPassReverse / http://localhost:9001/
ProxyPreserveHost on
<Proxy *>
Options FollowSymLinks MultiViews
AllowOverride All
Order allow,deny
allow from all
</Proxy>

RewriteEngine on
RewriteCond %{SERVER_NAME} =pad.bbs-ilias.de
RewriteRule ^ https://%{SERVER_NAME}%{REQUEST_URI} [END,QSA,R=permanent]
</VirtualHost>

  • Edit the  lines 1 and 20
  • Restart the webserver: /etc/init.d/apache2 restart
  • Call in the browser http://pad.yourdomain.tld
  • We expect:

Enable port 443/https

  • I assume that you allready installed certbot. If so, do the following:
  • certbot --apache
  • Choose your new vhost pad.yourdomain.tld
  • Follow the menu
  • Have a test in your browser: https://pad.yourdomain.tld
  • Update the new configuration (see table upwards) in ILIAS->Adminsitration->Plugins
  • You can find more information for https and ILIAS here


No comment has been posted yet.
